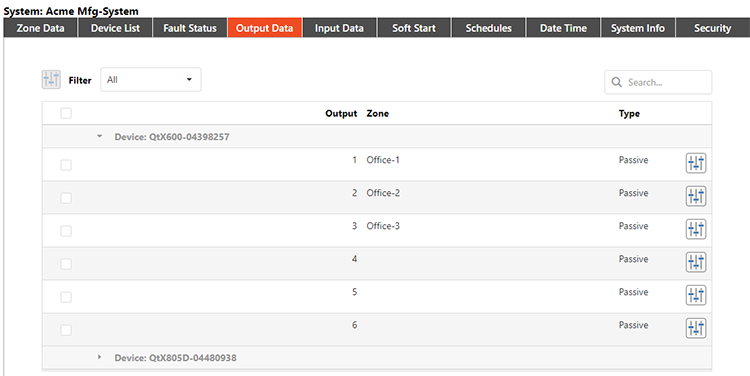

The Output List shows which device outputs are connected to which zones.

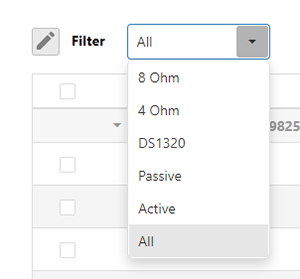

Users have the option to filter the output list based on the emitter type connected to the sound-masking device. The 8 Ohm, 4 Ohm, and DS1320 options can be used with the 800/805 devices. Passive and Active are the only emitter types that will work with the Qt X 300/600 devices. The filter drop-down gives the following filter options:
IMPORTANT NOTE: When active emitters are installed in a system, 'Active' must be selected in the Output window. Emitter type is not assignable from the front panel. Passive emitters are the default output type and active emitters employ a different sound masking spectrum. If the emitter type isn't changed to active, the installer may not be able to properly adjust the output levels for proper masking performance.
Emitter and speaker types available in the drop-down are based on the device type. Only applicable types are shown for each model.

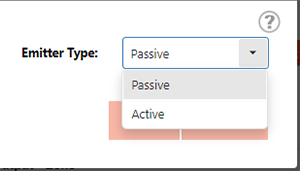

Qt X 300 / 600 models

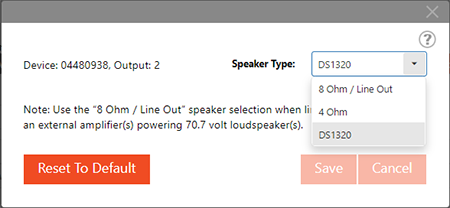

Qt X 800 / 805 models

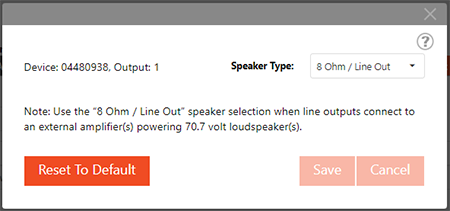

Choose the 8 Ohm / Line Out selection when using the Line Out connections to a external amplifier powering 70.7V loudspeakers.
